Strength of materials

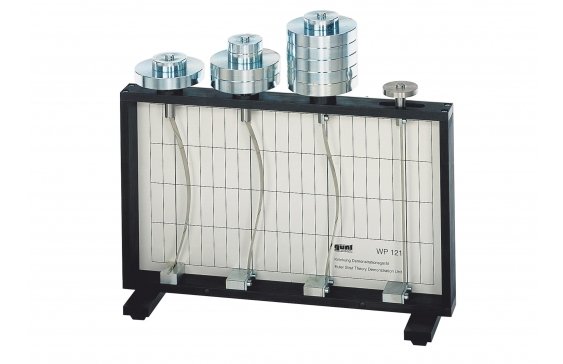

Demonstration of Euler bucklingCode: WP 121

Correlation between buckling length, buckling load and various methods of support.

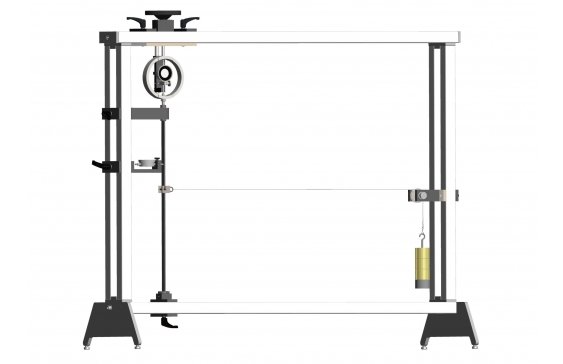

Buckling behaviour of barsCode: SE 110.57

Determination of the buckling load: influence of material, support, and shear force. SE 112 Mounting frame required.

Unsymmetrical bendingCode: FL 160

Investigation of symmetrical and unsymmetrical bending on a beam. Combined bending and torsion loading using an eccentric force.

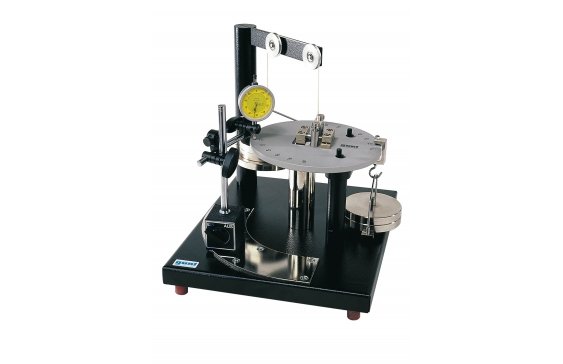

Verification of stress hypothesesCode: WP 130

Multiaxial loading of samples by bending and torsion.

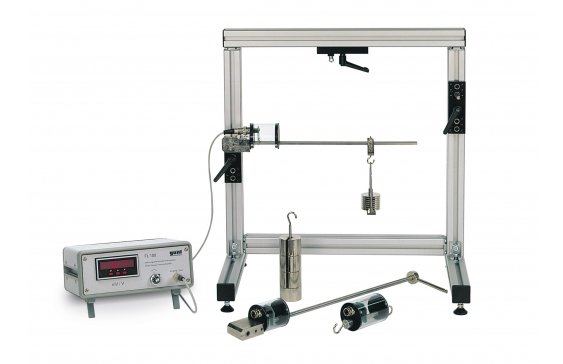

Strain gauge training systemCode: FL 100

Basic introduction to measurement with strain gauges for tension, bending and torsion.

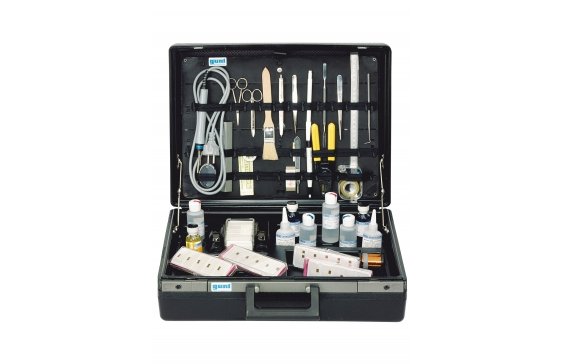

Strain gauge application setCode: FL 101

Complete equipment for practising manual handling of strain gauge technology.

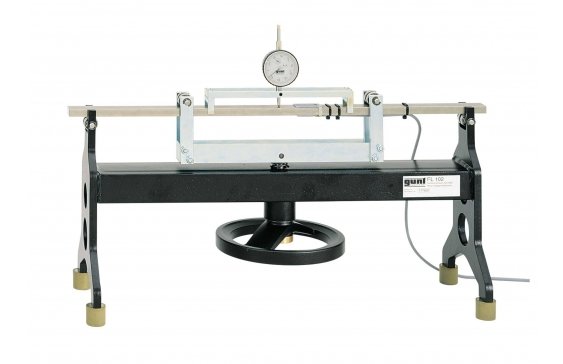

Determining the gauge factor of strain gaugesCode: FL 102

Investigation of deflection and strain to determine the gauge factor of strain gauges.

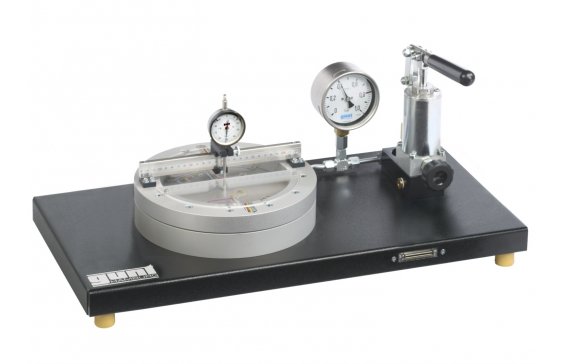

Stress and strain analysis on a membraneCode: 120

Investigation of deflection and strain of a membrane under internal pressure; membrane with strain gauge application.

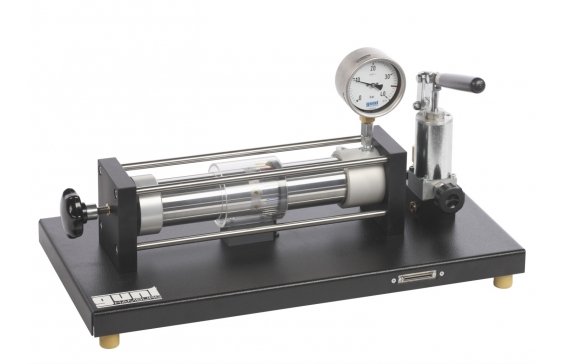

Stress and strain analysis on a thin-walled cylinderCode: FL 130

Investigation of axial and circumferential stress in a thin-walled cylinder under internal pressure.

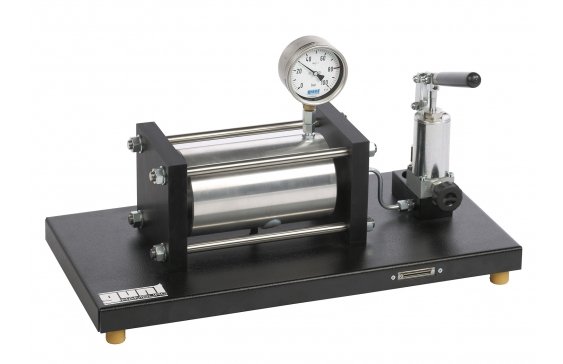

Stress and strain analysis on a thick-walled cylinderCode: FL 140

Triaxial stress state in the cylinder wall; cylinder with strain gauge application on surface and in wall.

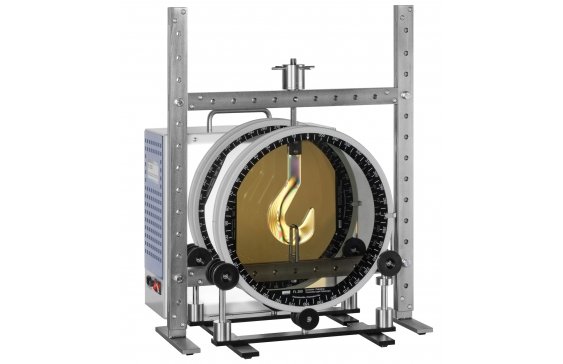

Photoelastic experiments with a transmission polariscopeCode: FL 200

Visualisation of mechanical stresses in models subject to varying loads.

Multi-channel measurement amplifierCode: FL 152

Processing of analogue strain gauge measuring signals for FL 120 - FL 140 and for GUNT trusses
