Description

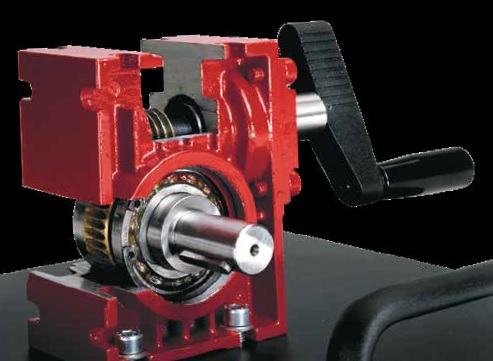

Using cutaway models it is possible to clearly demonstrate the operational principles of complex machine elements such as a multi-disc clutch, various gearboxes or a pedestal bearing. The cutaway models represent original components in which the active parts are clearly visible to the user while fully maintaining their mechanical functionality. In order to be able to use the cutaway models in engineering teaching, each model comes with standards-compliant and practical drawings and a technical description. Problems of engineering drawing, fasteners and machine parts or production and testing technology can be studied in a clear and practical manner using the cutaway models.
