Description

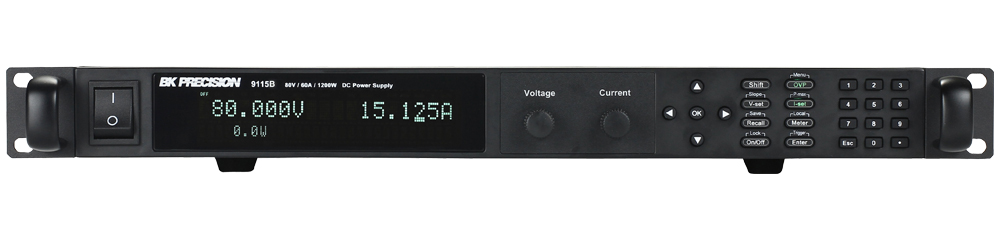

Any 9115/B Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.
For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog-style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces supporting SCPI commands. GPIB is available as an option for select models.
The 9115/B-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2:2012(E) standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.
• Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
• Compact, high density, 1U rackmount form factor (2U for 9117)
• High programming and readback resolution
• Adjustable voltage rise and fall times
• Sequence programming (internal list mode for 9115/B, 9115/B-AT, and 9116/B)
• Store and recall up to 100 instrument settings
• Standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces supporting SCPI commands for remote control
• GPIB optional for select models
• Analog interface with control and monitoring functions
• Remote sense
• Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
• Softpanel for remote control, test sequence generation, and data logging
