Description

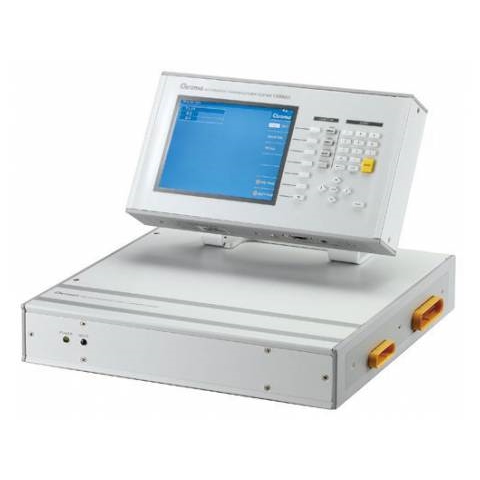

13350 provides 20Hz-200kHz test frequency and scan test items to cover low voltage test parameters for various transformers including Inductance (L), Leakage (Lk) , Turn-Ratio, DC Resistance (DCR), Impedance (Z), Stray Capacity (C), Quality Factor (Q), Equivalent Series Resistance (ESR).
Technical data
Test frequency 20Hz ~ 200kHz
Transformer Scanning: Turn Ratio, Phase, L, Q, Lk, ACR, DCR, Cp, Pin short
Basic accuracy : 0.1%
