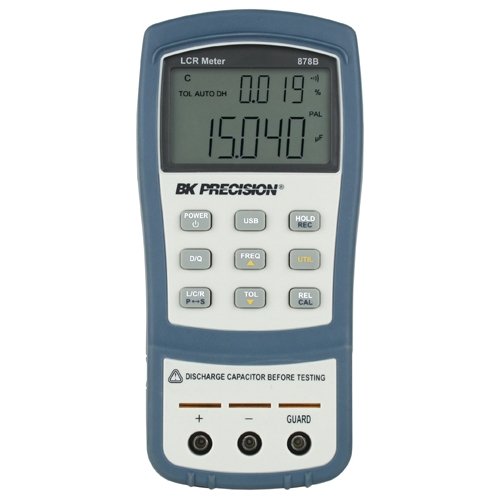

BK878B, BK879B, BK880 - Dual-Display Handheld LCR MetersBK878B, BK879B, BK880

Description

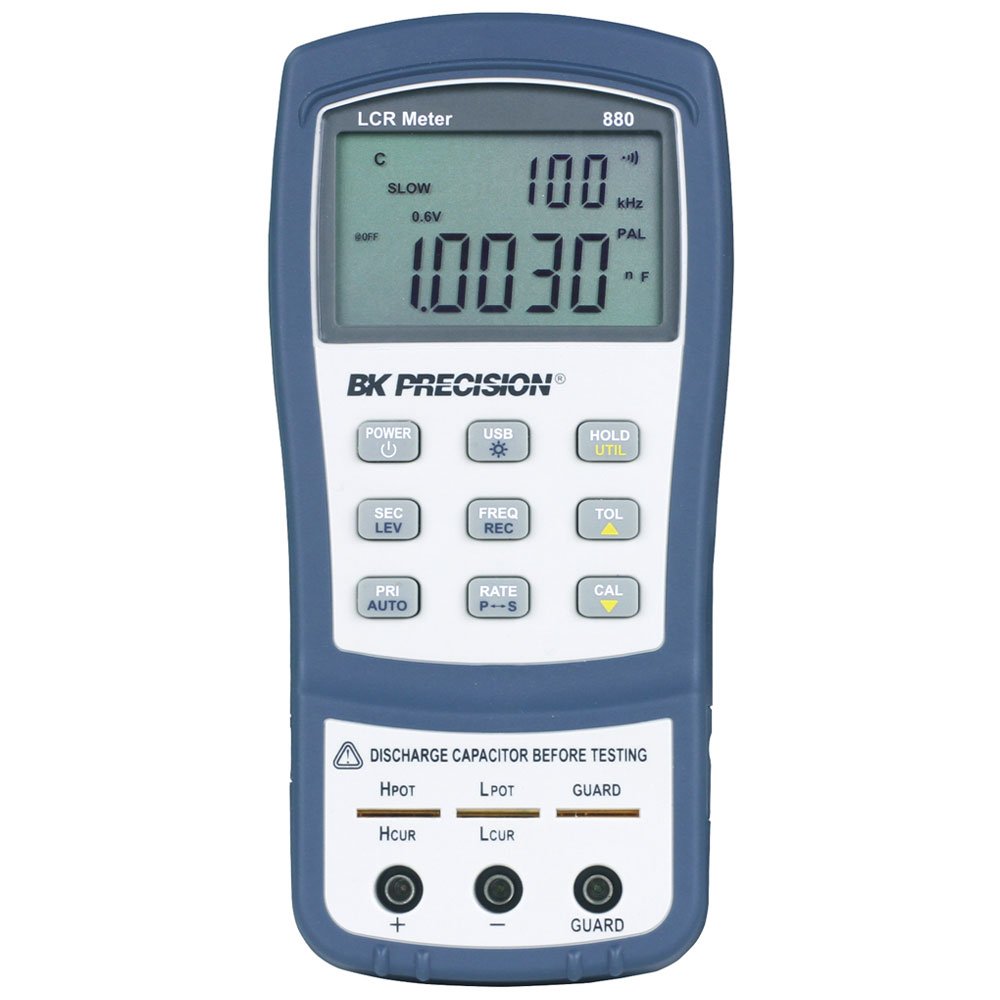

These handheld LCR meters measure inductances, capacitances and resistances quickly and precisely. The 879B and 880 also measure impedance, Theta, and ESR. Additionally, the 880 offers capabilities typically only found in bench LCR meters such as a 4-terminal configuration, basic measurement accuracy up to 0.1 %, test frequencies up to 100 kHz, selectable test signal levels and measurement rate.

Technical data

• Inductances (up to 1000 H)
• Capacitances (up to  20 mF)
• Resistances / impedances (up to 10 MΩ)
• ESR (up to 1000 Ω)
• 40,000 counts resolution on primary and 10,000 counts resolution on secondary display
• Auto Range
• Data Hold, Min/Max/Average, REL
• USB interface
• SCPI compliant commands for remote communication
