Description

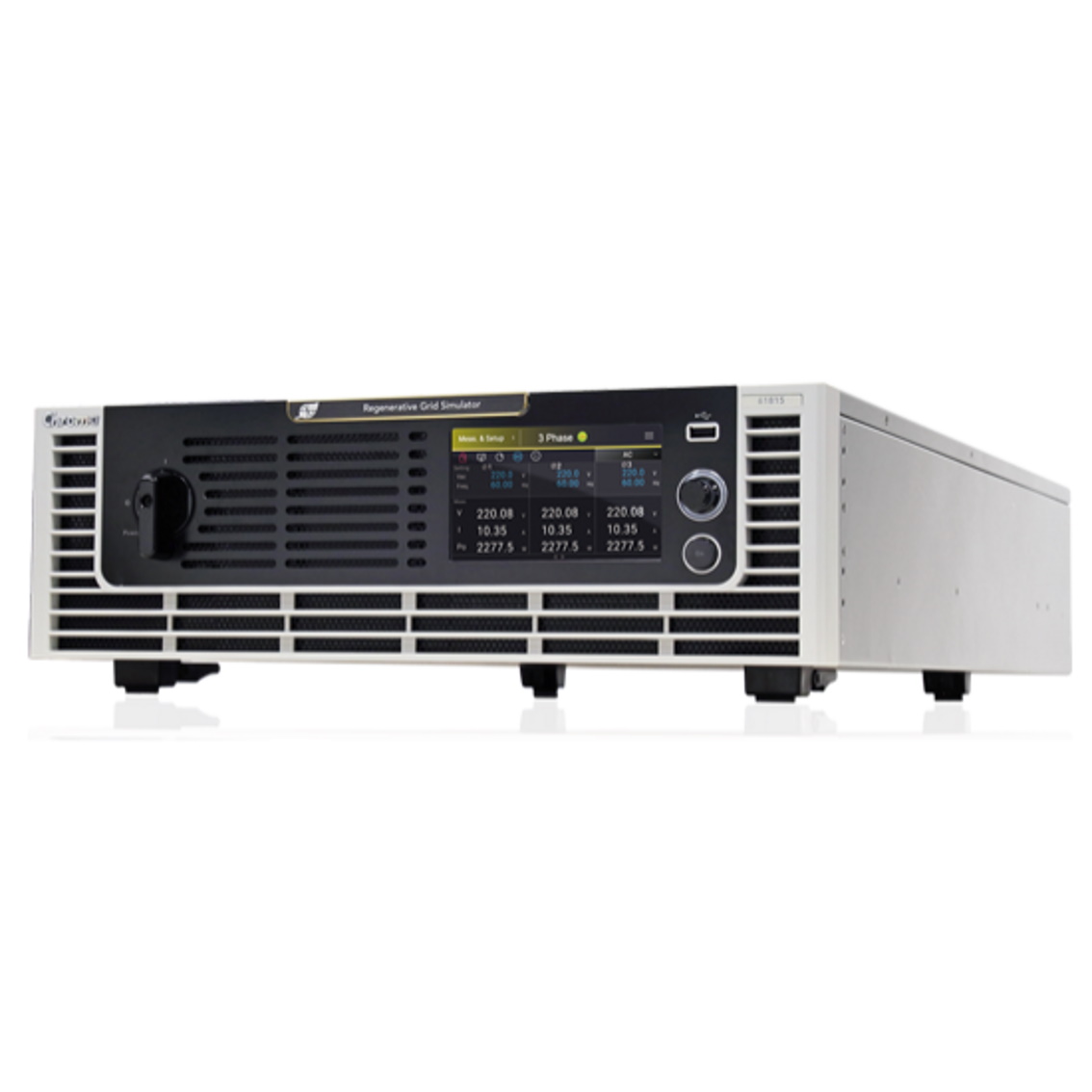

Chroma 61800 3U high series of regenerative grid simulators include three models with power ratings of 9kVA, 12kVA, and 15kVA and include single phase and 3-phase operation.
With output voltage ranges up to 350VLN and 606VLL, each model can achieve 700VLN by a single phase 3-wire setup. Users are able to increase output power by configuring up to three units in parallel.
Chroma 61809/61812/61815 models are regenerative providing a complete energysaving solution. The power generated by the DUT during the test can be easily fed back to the grid, rather than dissipated as heat, which protects the environment and lowers the cost of operation. With this capability, these models can be applied to applications in green energy products, such as PV inverters, energy storage systems (ESS), power conditioning systems (PCS), micro grids, power hardware-in-the-loop (PHIL), electric vehicle power supply equipment (EVSE), on-board charger (OBC) and bidirectional on-board charger (BOBC), etc.
Technical data
KEY FEATURES:
■ Output voltage: 0~350V
■ Output frequency: 30Hz~100Hz/DC
■ High Power Density 15kVA in 3U
■ Intuitive Touch Panel Interface
■ User selectable single phase or
three phase output
■ Accept reverse rated apparent power
with regenerative conversion to grid
■ Specifically designed for EV, PV inverter
and Smart Grid related test applications
■ Programmable slew rate settings for
voltage and frequency
■ Programmable voltage and current limits
■ Turn on, turn off phase angle control
■ Synchronize TTL signal of voltage changing
■ LIST, PULSE, STEP mode functions
for testing Power Line Disturbance (PLD)
simulation
■ Harmonics, inter-harmonics waveform
synthesizer
■ Comprehensive measurement capability,
including current harmonics
■ Universal AC Input Range
■ Standard USB, LAN Interface
■ Optional CAN, GPIB Interface
■ Parallel output for higher power
applications (Three phase only)
■ Regenerative AC Load (option)
