Description

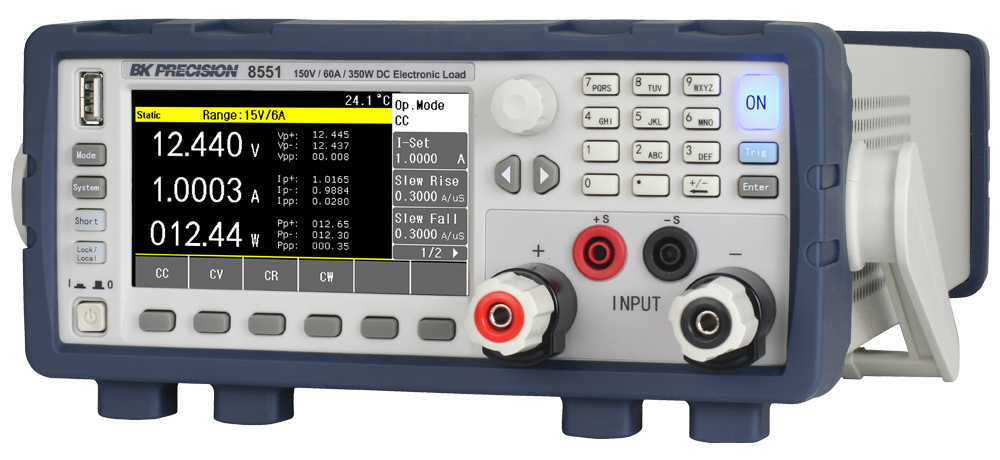

The 8550 Series DC electronic loads provide many features and capabilities typically found in performance instruments, at a value price. Capable of sinking 350 W in a compact benchtop form factor, this series is well equipped for testing and evaluating power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
Configurable list, transient, and automatic test modes offer dynamically changing load conditions for evaluating a variety of DC sources. The dedicated battery discharge mode simplifies battery testing.
• High power density, up to 350 W in compact 2U half-rack form factor
• Transient mode up to 20 kHz in CC mode
• CC/CV/CR/CW operating modes
• Front panel remote sense
• List mode programming
• Automatic test mode
• Overvoltage (OVP), overcurrent (OCP), Overpower (OPP) protection, remote reverse voltage (RRV), and key-lock function
• Thermostatically-controlled fans for quiet operation
• Short-circuit test
• Configurable battery discharge test
• CR-LED mode to simulate the loading behavior of typical LEDs
• Adjustable voltage/current slew rate
• Front panel USB host port for logging measurement data
• Operating software and battery test software provided
• RS232 and Handler interfaces
