Description

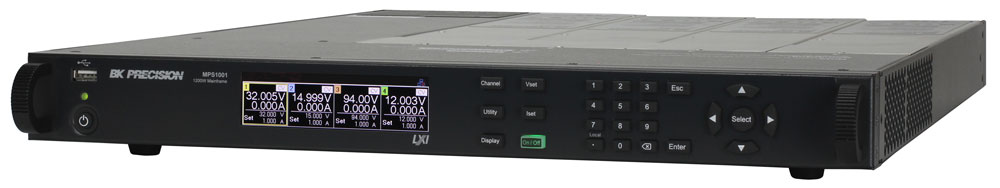

The MPS Series Modular System DC Power Supplies provide up to four output channels and 1200 W in a compact 1U form factor. Select from eight different modules with various voltage and current ratings to create a 1 to 4 channel DC power supply ideal for ATE system applications.
Modules are capable of outputting 100 W (multi-range) or 300 W (fixed range) to meet different power requirements. Populate mainframes with any combination of modules to deliver a total output power of 600 W or 1200 W. This series includes USB (USBTMC-compliant), LAN (LXI-Class C compliant), and GPIB interfaces standard supporting SCPI commands.
• Compact size supports up to four outputs in a 1U form factor
• Modular design
• Multi-ranging operation delivers rated power at multiple voltage/current combinations
• Advanced list mode programming
• Series/parallel operation increases maximum voltage/current output
• Module synchronization and output coupling
• Adjustable voltage and current slew rates
• OVP, OCP, OTP, and key-lock protections
• USB (USBTMC-compliant), LAN (LXI-CLass C compliant), and GPIB interfaces standard
• LabVIEW, IVI-C, and IVI.NET drivers provided
• Fast command processing time (< 10 ms)
• Rack-mount kit included
• NISPOM-compliant sanitization to securely restore factory settings
• Operating software and battery test software provided
• cTUVus certification mark
