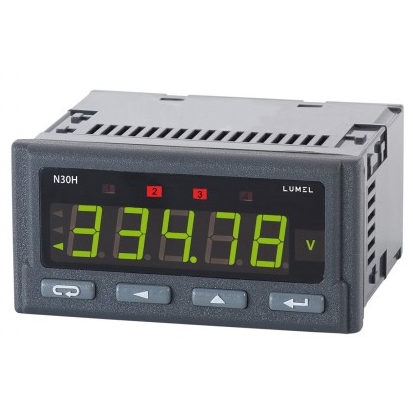

Lumel N30H - Programmable digital meter of d.c. current, d.c. voltageN30H

Description

• Input: d.c. current 6 A; d.c. voltage 600 V
• Output: relay (4), analog (1), digital RS-485/MODBUS (1),
• Three-color display - red, green and orange, programmable in three intervals of the measured value - facilitates the observation of measured quantity changes.
• Four alarm outputs with signaling on LED diodes operating in 6 different modes,
• Conversion of any measured optional values into the analog signal 0/4...20 mA or 0...10 V,
• Storage of minimal and maximal values for all measured quantities,
• Meter programming from the keyboard or through RS-485 interface by means of the free eCon software.
• Supply: 85...253 V a.c./d.c. or 20...40 V a.c./d.c.
• Casing protection grade: IP65
