Description

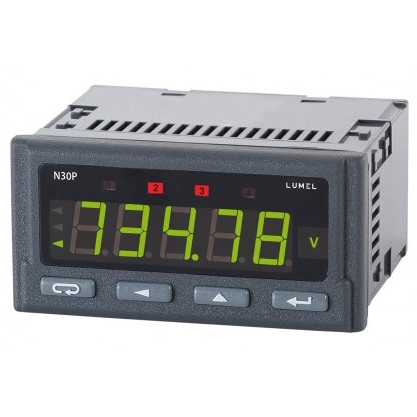

N30P meter is destined to measure: a.c. voltage, a.c. current, active, reactive and apparent power, cos φ, tg φ, φ, frequency, active, reactive and apparent energy, 15 min. active power, 10 min. voltage, 10 sec. frequency in single-phase power network.
Technical data
- Input: current 0 ÷ 1 A or 0 ÷ 5 A; voltage 0 ÷ 100 V or 0 ÷ 400 V
- Output: relay (4), analog (1), digital RS-485/MODBUS (1),
- Three-color display - red, green and orange, programmable in three intervals of the measured value - facilitates the observation of measured quantity changes.
- Four alarm outputs with signaling on LED diodes operating in 6 different modes,
- Conversion of any measured optional values into the analog signal 0/4...20 mA or 0...10 V,
- Storage of minimal and maximal values for all measured quantities,
- Meter programming from the keyboard or through RS-485 interface by means of the free eCon software.
- Supply: 85...253 V a.c./d.c. or 20...40 V a.c./d.c.
- Casing protection grade: IP65
