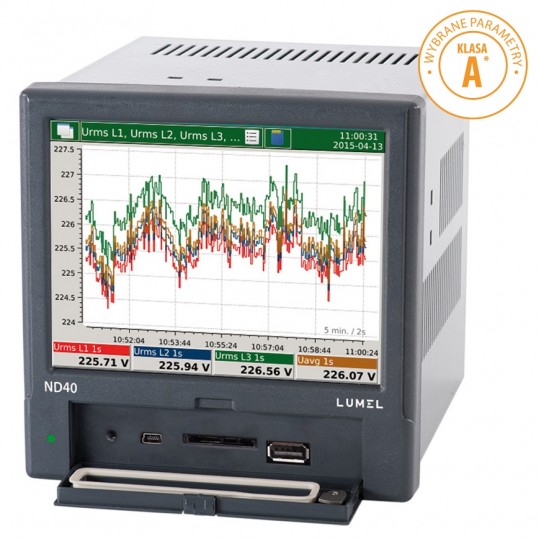

Lumel ND40 - Power network analyzer / recorderND40

Description

• Measurement and recording of over 500 electric energy quality parameters acc. to EN 50160, EN 61000-4-30, EN 61000-4-7 standards.
• Measuring Class A - for 3 second aggregation. 10 minute and 2 hour aggregation - class S.
• Operation in 3 or 4-wire, 3-phase, balanced or unbalanced power networks.
• Analysis of current and voltage harmonics up to the 51st for class I (acc. to EN 61000-4-7).
• 4-quadrant energy measurement
• Configurable archives of actual values and events recording.
• Data archiving on an SD card - memory up to 32 GB.
• Binary inputs (optionally)
• Relays, binary or analog outputs (optionally)
• E-mail messages in case of alarm occurs,
• Web Server, Ftp Server.
• Interfaces: RS-485 Modbus Slave, Ethernet 100 Base-t (Modbus TCP/IP Server), USB device & host.
• Colour touch screen: LCD TFT 5.6", 640 x 480 pixels.
• IP65 protection grade from the frontal side.
