Description

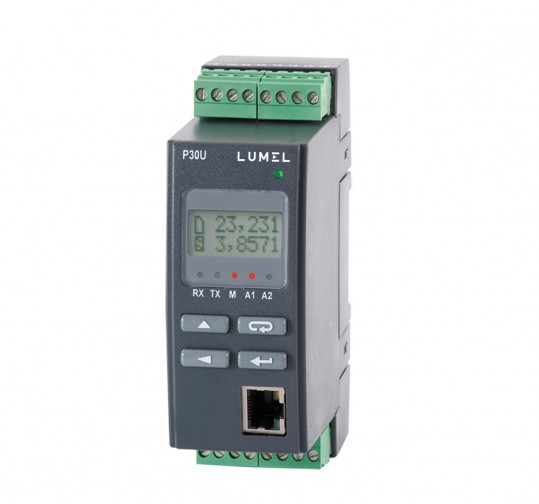

P30U transducer is designed to convert temperature, resistance, standard voltage and current signals into a standard DC voltage or DC current signal. The output signal is galvanically isolated from the input signal and the power supply. Programming parameters can be realized with the use of buttons, via RS-485 interface and free e-con software or Ethernet or any web browsers via Ethernet interface.
Technical data
thermocouples, resistance thermometers,
0...4/20 mA, +/- 20mA
-5...20mV, +/- 75mV; +/-200mV
400, 2000, 5500 ohm
RS485 Master or Slave
analog (current or voltage)
1 or 2 x relays
digital RS-485
- LCD 2 x 8 characters with LED backlight
- Supply: 85..253 V a.c./d.c. or 20...40 V a.c./d.c., / 20...60 V d.c.
- Additional supplying output 24 V d.c 30 mA switched-on/switched-off (option).
- real time clock with a clock power supply backup function in case of a transducer power supply loss,
- recording the signal input in programmed time periods in the internal memory and on SD/SDHC card (option),
- internal memory with the capacity of 534336 records,
- automatic decimal point setting,
- preview of configured parameters,
