Description

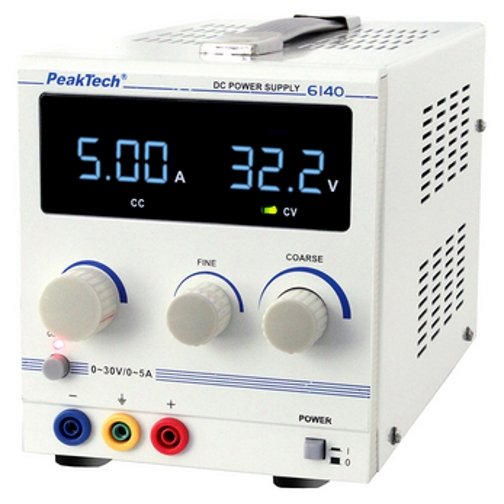

Linear regulated power supplies with 3-digit 14 mm blue LED-displays for the voltage and current indication . These power supplies provides with continuously adjustable voltage output, the constant voltage and constant current are switchable automatically and the current limit protection point can be set arbitrarily, whereas in the constant current state, output current is continuously adjustable. The model P 6145 provides 2 adjustable outputs for constant voltage and current, which can be connected in series or parallel, that means max. output voltage 60 V DC (in series) and max. output current 10 A DC (in parallel).
Technical data
- 4 mm safety jacks
- Output on/off switchable
- LED-displays for both indicating voltage and current
- Short circuit and overload protection
- Fix way outputs of 5 V/3 A (P 6145) and 5 V/0,5 A resp. 12 V/0,5 A in excellent stability and ripple factor
