Description

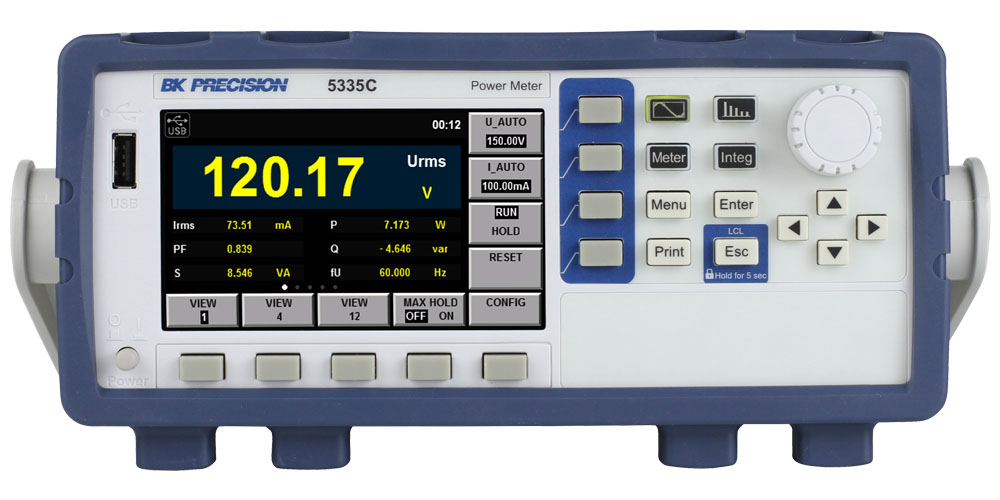

The 5335C is a compact, single-phase AC / DC power meter for measuring and analyzing power consumption and power quality parameters quickly and accurately. It supports power measurements up to 600 Vrms and 20 Arms, with a bandwidth up to of 100 kHz.
The 5335C measures all AC and DC parameters, including power, current, voltage, power factor, frequency, and phase. Additionally, the meter features a powerful integration function, the ability to perform harmonic measurements to the 50th order and an oscilloscope mode.
Features & Benefits
• 600 Vrms ( Cat II ) and 20 Arms direct input ranges
• Frequency ranges DC, 0.5 Hz to 100 kHz
• 0.1% basic accuracy for voltage and current measurements
• 4.3-inch color LCD (TFT)
• Simultaneously measure and display up to 12 different measurement parameters
• Capture inrush current, and voltage surge with the peak function
• Harmonic measurements to the 50th order
• Integration function with automatic range switching
• Ability to measure electric energy which is produced or consumed
• Pre-compliance testing according to IEC/EN62000-3-2 / 4-7
• Standard USB (USBTMC-compliant), RS232, and LAN interfaces
• Line and frequency filter capability for reducing unwanted signal noise
• Optional universal breakout box to simplify connection between power meter and DUT
