Description

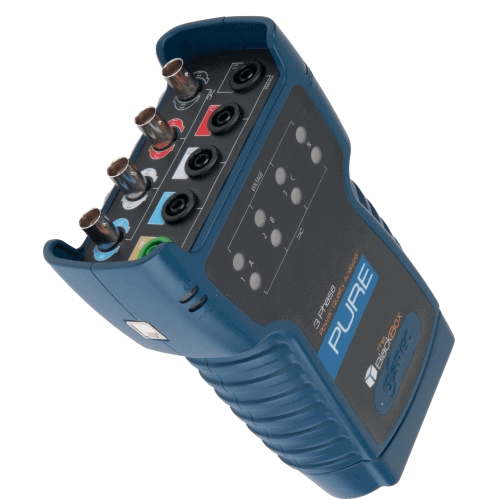

The Pure BlackBox, an advanced handheld 3 phase power quality analyzer embedded with PQZIP Technology, is an easy to use plug and play device that continuously records all power quality parameters without thresholds settings or recording configuration.

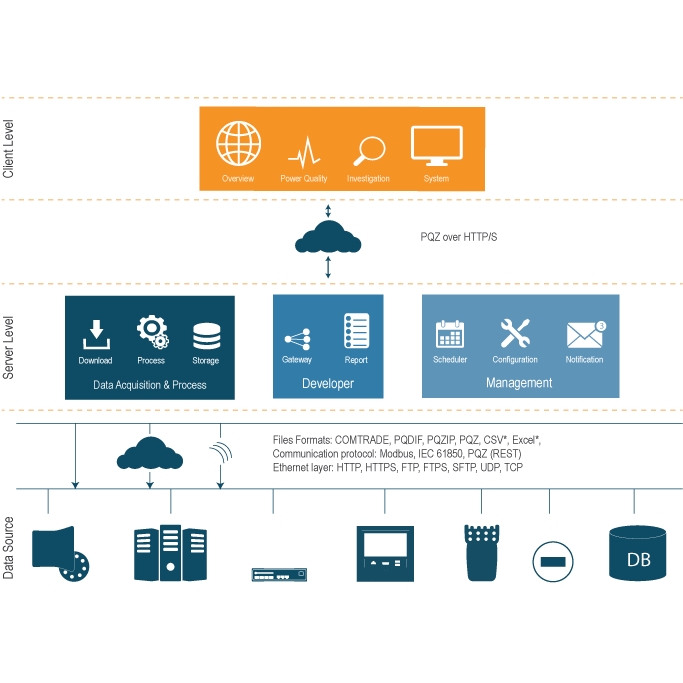

PQSCADA Sapphire - Accurate Data Anywhere, Anytime !
PQSCADA Sapphire is a comprehensive, yet easy to use, analysis and engineering software designed to manage and monitor power quality analyzers, digital fault recorders, revenues meters and other IED. The PQSCADA Sapphire express edition is complimentary with all Elspec devices.
Technical data
Features:
Continuous Waveform recording at 256 Sample/Cycle
Class A devices IEC30-4-61000
Configuration FREE Device
Fast USB connectivity to PC
SD card slot hot swap
Optional battery bank and
communication extension for remote data collection over LAN network, wireless Wi-Fi or cellular communication
IP40 for rugged environments
Lightweight, hand-held portable PQ recorder
Easy to use
Continuous Waveform Recording, at a rate of 256 Sample/Cycle at 50/60Hz,
High Resolution Recording (more than 5,000 power quality parameters such as RMS, THD, powers, power factor, unbalance and harmonics are logged continuously for more than a year at ½ cycle, 10/12 Cycles, 150/180 Cycles, and 2 hours resolution)
Harmonics Measurements: records and store 128 harmonics components at 50Hz resolution and 512 inter-harmonics components at 5Hz resolution for both voltage and
current.
