Description

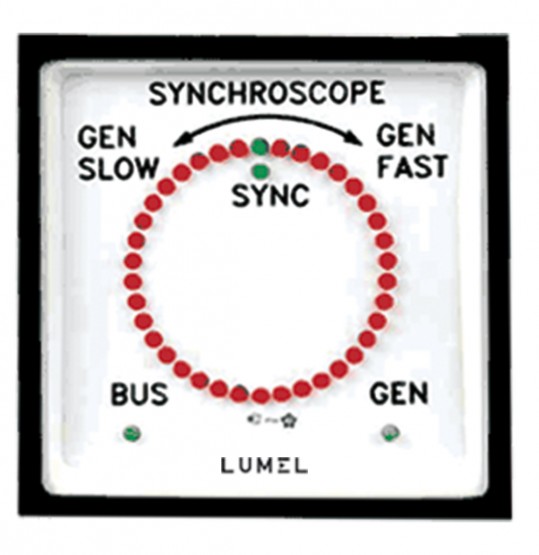

Synchroscope SA12 and SA19 types are designed to provide an illuminated indication of actual phase & frequency differences between two AC alternators, which are to be paralleled (between the BUS voltage - reference voltage and the GENERATOR voltage - incoming voltage).
Technical data
- Ideal visualisation on circular bargraph
- One or two range of input voltage
- Range of input signal: 57...500 V
- Frequency range: 35 - 70 Hz
- External dimensions:
SA19 type - 96 x 96 x 111.5mm
SA12 type - 144 x 144 x 111.5mm
