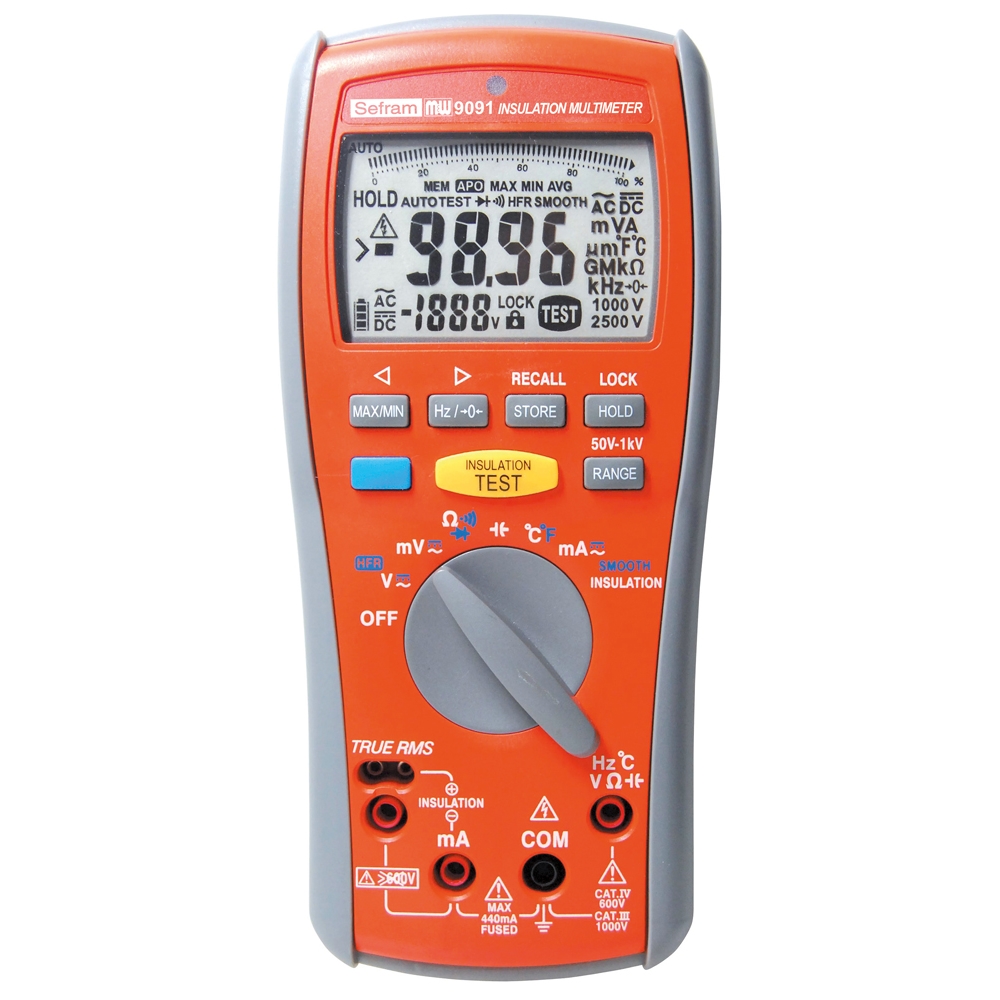

Sefram MW9091 - TRMS DMM / Insulation TesterSefram MW9091

Description

• Insulation resistance : 0 ~ 22 GΩ @  50 V / 100 V / 250 V / 500 V / 1000 V
• Resistance  up to 40 MΩ
• Diode & continuity test
• TRMSAC / DC Voltage up to 1000 V
• AC / DC Current measurement (up to 400 mA)
• Frequency measurement (from 100Hz to 100kHz voltage and current)
• Capacitance measurement (from 100nF to 40mF)
• Temperature measurement (from -200°C to +1000°C)

Technical data

• MIN/MAX, AVG, REL and HOLD mode
• LCD, 10000 counts, bargraph
• Auto Power Off
