Description

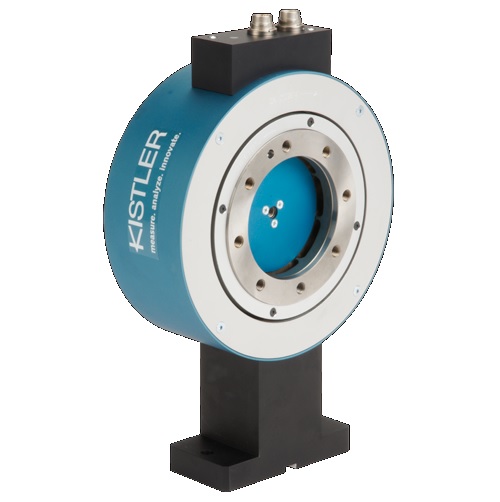

Assembly with Clamping Set, Contactless Signal Transmission, Speed Measurement 1 x 60 pulses/rev., Torque up to 20000 Nm
Technical data
Rated torque: 100 ... 20 000 N∙m
• Ratio for second range: 1:10 or 1:5 of rated torque
• Speed ranges up to 12 000 1/min
• Accuracy class in standard measuring range: 0,2
In the extended measuring range: 0,4
• Integral speed sensor with 60 pulses/revolution
• Maintanance-free, bearingless
• Flange and hub solution
• Digital non-contact signal transmission
• Electrical control signal
• Active temperature compensation
• Calibrated RS-232C output
