Description

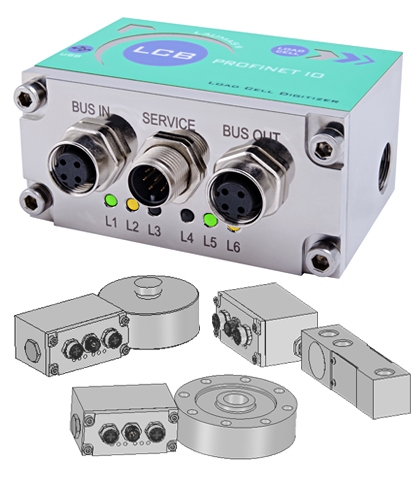

LCB Digitizer transforms an analog load cell (output mV/V) into digital and can also be used on existing load cells or strain gauge sensors. Designed for an assembly/wiring integral with the load cell body, it can be connected by fieldbus to PLCs of the most important international brands.
Optional fieldbuses: PROFINET IO, Ethernet/IP, Ethernet TCP/IP, Modbus TCP, PROFIBUS DP, EtherCAT, POWERLINK, CANopen, CC-Link, CC-Link IE, SERCOS III, IO-LINK.
Micro USB port
16-bit Analog output: 0/4-20 mA; 0-5/10 V (optional)
RS485 port (optional)
Direct connection between RS485 and RS232 without converter.
2 logic inputs, 3 relay outputs
Single loading batchings, max 99 formulas
Possibility to perform calibration, inputs and outputs setting and calibration data storage via PC software included in the supply.
