Z-FLOWCOMPUTER

Code: z

Description

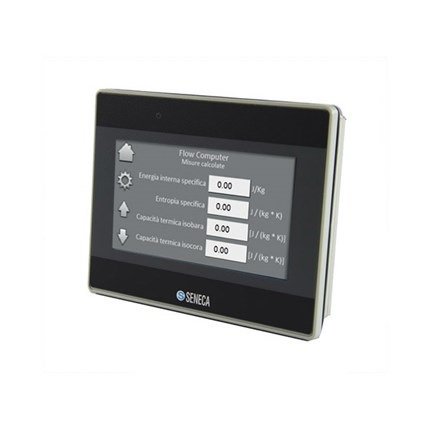

Flow computer for liquids, vapors and gas flow calculations with HMI 4.3"
Z-FLOWCOMPUTER, supplied with a 4,3" touchscreen HMI, is a flow computer for water, steam and gas applications. The unit is equipped with nr. 4 PNP/NPN digital inputs, nr. 2 voltage/current analog inputs, nr. 1 universal analog input, nr. 2 relay digital outputs and nr. 1 analog voltage/current output.
The versatility of this controller, which is guaranteed by different standards of input signals, allows the use in applications such as corrected flow or energy efficiency calculation for white certificates issue. Water and steam applications compressibility factor is calculated conforming to international standard IAPWS IF-97 while flow rate totalization and compensation for both NATURAL and REAL GAS are calculated according to SGERG88 ISO 12213-3, AGA8 GROSS, AGA8 92-DC ISO 12213-2, RK and RKS algorithms calculation standards.
